Motion Intelligence Platform

Every move. Every moment. Measured.

The ANT Tracker is a 45-gram device that streams your world in motion — up to twenty positions per second, anywhere on Earth, straight into your dashboard or your code.

Up to 20 Hz Sub-meter 9-axis IMU Global LTE-M TLS 1.3 Open API
Request a Demo Explore Use Cases →
Built by the team behind Pegasus Speedway
LIVE · UP TO 20 Hz3 devices · TLS 1.3
ANT-0117 0 km/h
ANT-0234 0 km/h
ANT-0089 0 km/h
Trajectory · Top-down viewLat/Lon → X/Y projection
0 Hz
Max Position Rate
0 g
Device Weight
0 +
Countries Covered
< 0 m
CEP Accuracy

Capabilities

A small device with a long résumé.

Designed for production teams, trusted by race engineers, and open enough for your own ideas. Everything the ANT Tracker does, in six pieces.

Pinpoint Positioning

Up to twenty fixes every second.

Multi-constellation GNSS locks onto satellites in seconds and streams sub-meter positions at up to 20 Hz — twenty times faster than a consumer GPS. The difference between a smooth line on screen and a jagged staircase. Defaults to 10 Hz for typical deployments.

20Hz
max update rate
9-Axis
IMU

Motion Intelligence

More than a dot on a map.

Nine-axis inertial sensing captures acceleration, rotation, and heading. Detect impacts, falls, jumps, cornering forces, and complete orientation — data a position alone can never reveal.

170+
countries

Connected Everywhere

Power on. Already online.

An embedded global eSIM covers 170+ countries on LTE-M and NB-IoT. No contracts, no SIM swapping, no carrier setup — the tracker is online the moment it boots.

<250ms
end-to-end

Real-Time Delivery

From the field to your screen in milliseconds.

Encrypted MQTT over LTE-M feeds our cloud bridge, which streams data to your dashboard and API consumers through WebSockets. Glass-to-glass latency you can measure in ticks.

Secure By Default

TLS everywhere.

Every byte between device, cloud, and dashboard flows over TLS 1.3 with unique per-device credentials. Claim tokens prevent hijacking. No open endpoints, no shared secrets.

Built for Builders

A platform, not a black box.

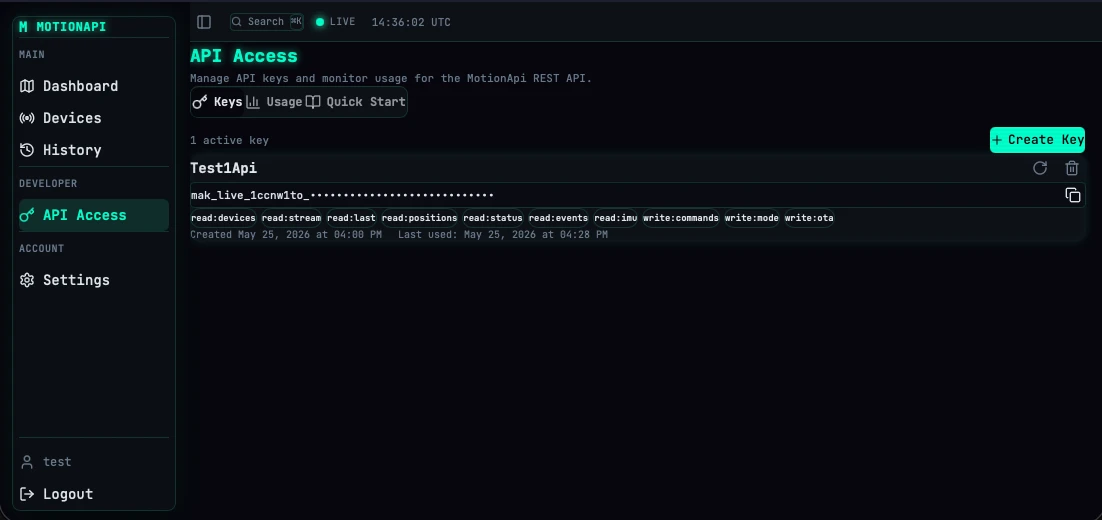

REST endpoints, real-time WebSocket streams, webhooks, and OpenAPI contracts. Drop tracking into your broadcast graphics, race control, CRM, or internal tools in an afternoon.

Where ANT earns its keep

Six worlds. One platform.

From live television to alpine expeditions, the ANT Tracker has been designed to work where most consumer GPS fails. Pick a use case to see how.

Use case · 01

Live Sports Broadcast

Graphics that follow the action.

Feed live positions, speeds, and distances straight into your broadcast pipeline. Drive AR overlays, scoreboards, and virtual graphics with the same data your production crew trusts — frame by frame, second by second.

  • Sub-frame position updates up to 20 Hz
  • Direct feed into Vizrt, Chyron, Unreal Engine, or custom graphics
  • Per-device naming, coloring, and metadata for talent and vehicles
  • Redundant ingest — no dropouts when it matters most
20Hz
max stream rate
<250ms
glass-to-glass
Scenario

Broadcasting a rally stage? Overlay real-time driver speed and gap-to-leader directly onto the helicopter shot.

The device, in numbers

ANT Tracker v1.

Four categories. The numbers that decide whether a tracker lives on a professional kit or gathers dust in a drawer.

45g
Total weight

Light enough to forget you're wearing one.

Slips into a shin pad, clips onto a helmet, rides in a driver's suit. The form factor was designed so athletes, operators, and drivers simply don't notice it.

Category · 01

Positioning

Update rate
Up to 20 Hz (10 Hz default)
Accuracy
<1 m CEP
Constellations
GPS · GLONASS · Galileo · BeiDou
Time to first fix
<3 s warm start
Category · 02

Motion sensing

IMU
9-axis (accel + gyro + mag)
Barometric altitude
±1 m
Events
Impact · fall · free-fall
Orientation
Full quaternion output
Category · 03

Connectivity

Modem
LTE Cat-M1 · NB-IoT
SIM
Embedded global eSIM
Coverage
170+ countries
Protocol
MQTT over TLS 1.3
Category · 04

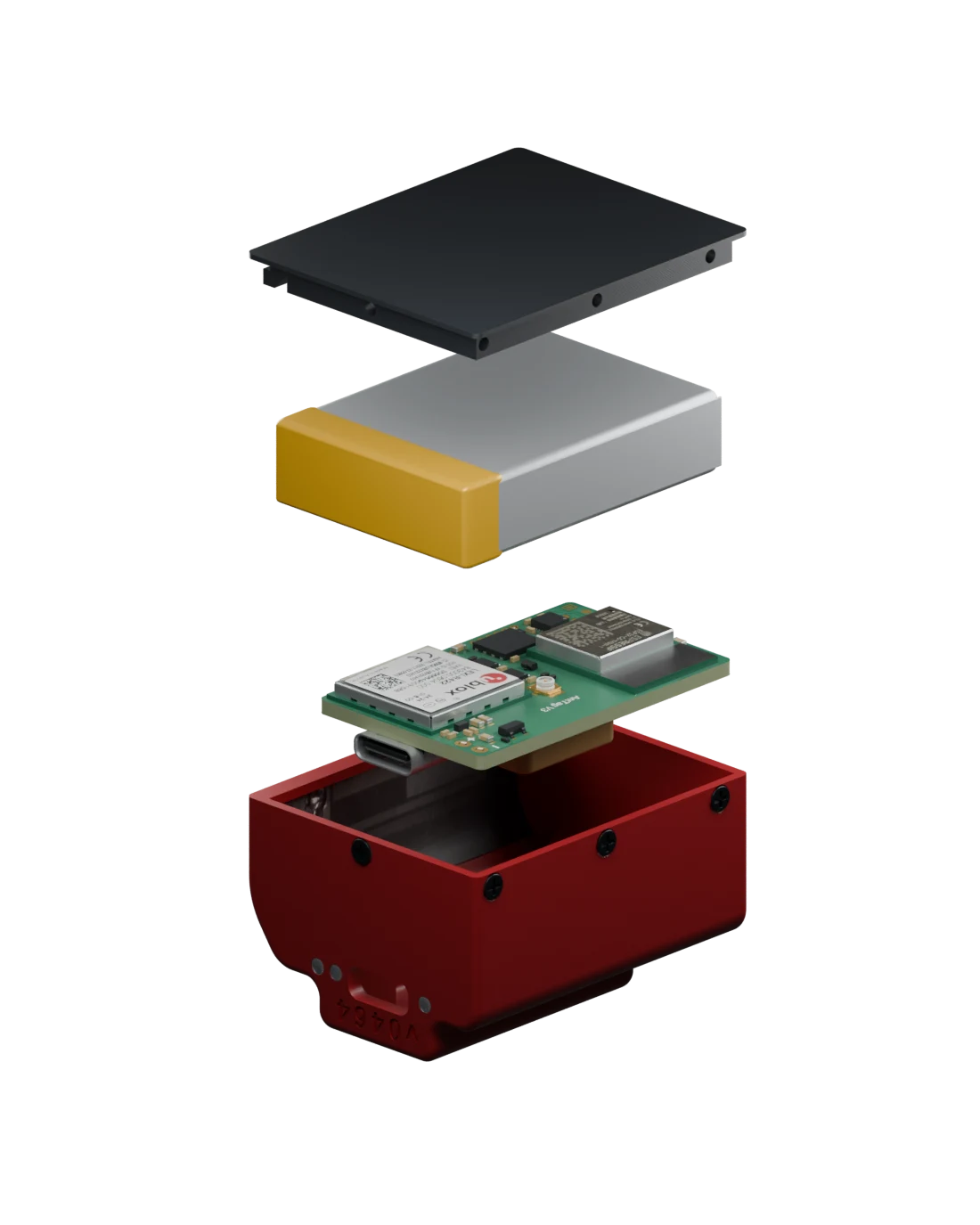

Form factor

Weight
45 g
Battery
Rechargeable Li-Po
Runtime
Hours to days, configurable
Feedback
Status LED · piezo buzzer

Specs reflect ANT Tracker v1 in standard configuration. Custom variants (ruggedized, extended battery, external antenna) available on request.

Heritage

Built on years of experience developing Pegasus Speedway — the official telemetry system used in professional speedway racing broadcasts across Europe.

Pegasus Speedway
Telemetry System
Blackburst
Production Partner

From Concept to Live Tracking

A streamlined path from initial consultation to production-ready deployment.

Consult

Tell us about your use case. We design a tracking solution tailored to your sport, broadcast, or enterprise workflow.

Deploy

Receive preconfigured ANT Trackers ready for the field. No setup, no SIM management — power on and connect.

Operate

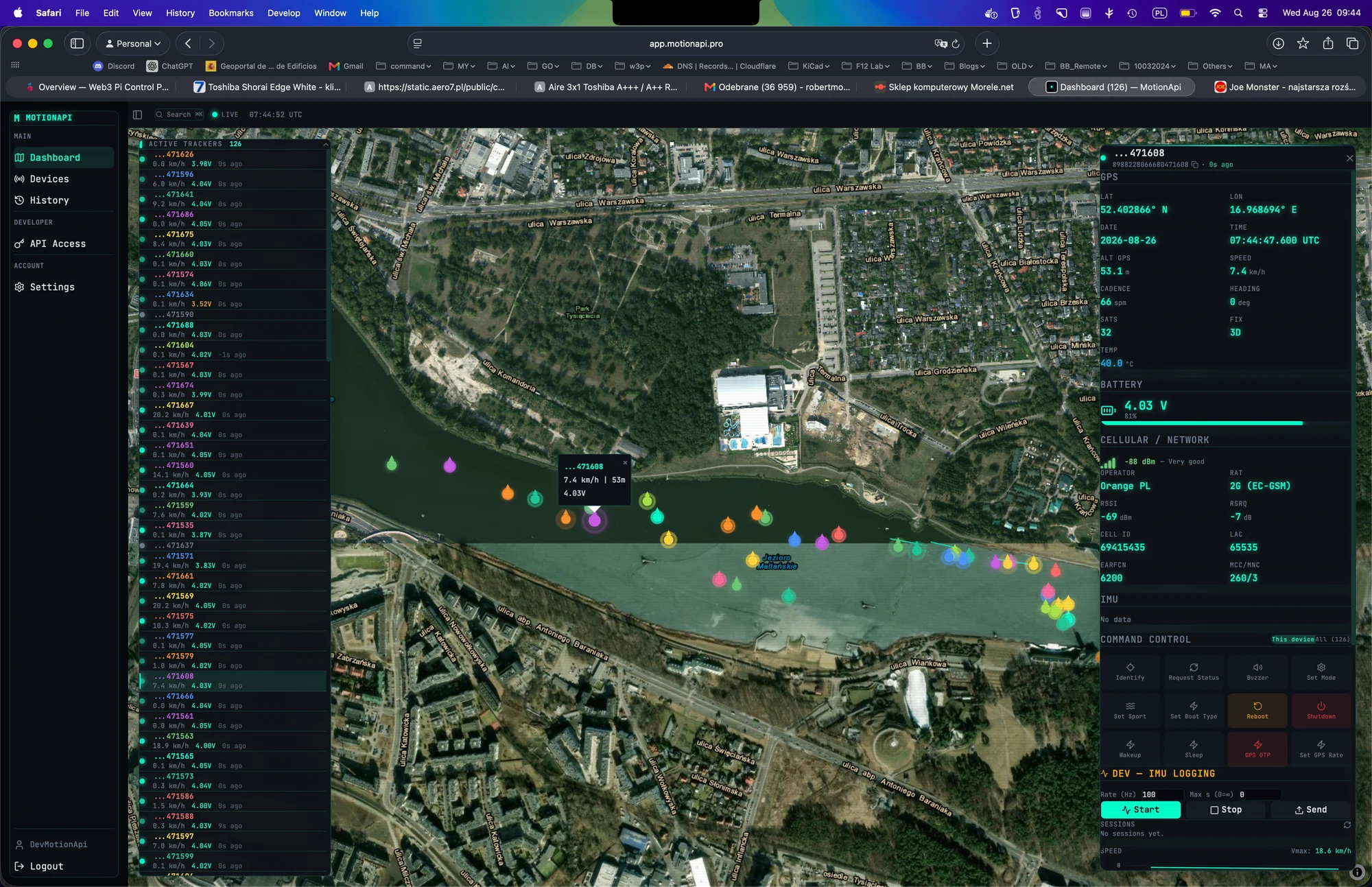

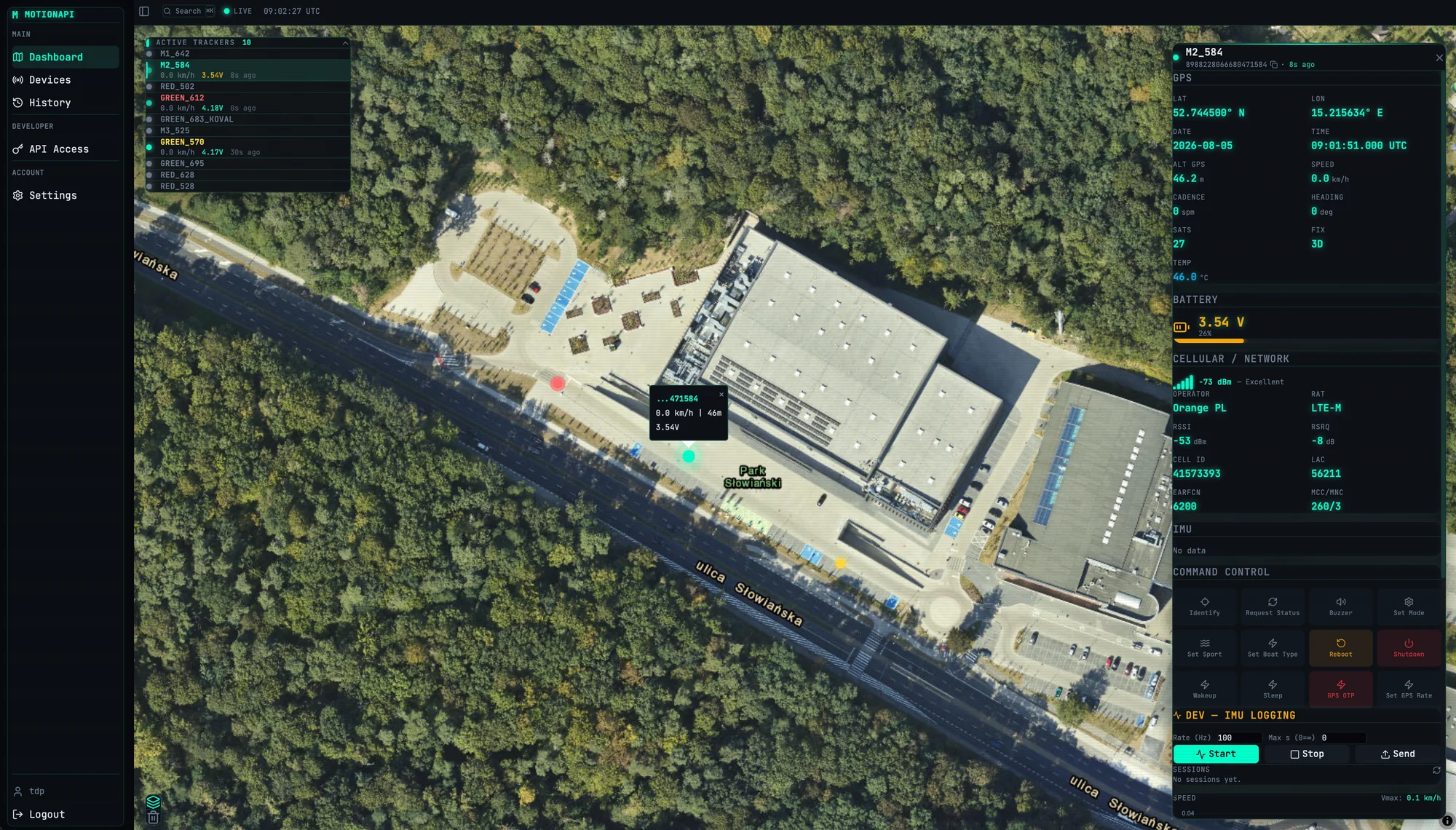

Access real-time positions, sensor data, and historical tracks through the dashboard or integrate via our open API.
